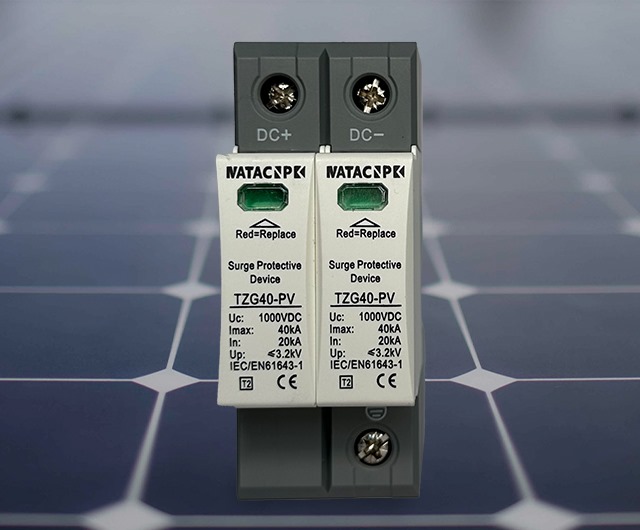

The DC MCB NATI 1C-125, NAT7Z-63, and NAT 40-PV DC SPD are advanced protection devices designed for DC applications. The NATI 1C-125 offers overload and short circuit protection with a 125A current rating, ensuring reliability in solar and other DC circuits. The NAT7Z-63 supports up to 63A and 1000V DC, making it ideal for photovoltaic and high-voltage DC systems. Enhancing circuit safety, the NAT 40-PV DC SPD protects sensitive equipment from voltage spikes and transient overvoltages with its high discharge capacity and compact design. Together, these devices deliver comprehensive solutions for safeguarding and optimizing DC electrical systems with efficiency.
| Test Standard | IEC/EN 61643-11, GB/T18802.11 |
|---|---|
| IEC Test Classification | T2/Class II |
| Max. PV Voltage | 600VDC, 800VDC, | 1000VDC, 1200VDC |
| Nominal Discharge Current | 20kA |
| Maximum Discharge Current | 40kA |
| Poles | 2P or 3P |
| Voltage Protection Level (Up) | ≤ 3.2kV or ≤ 4.0kV |
| Response Time | 25ns |
| Connecting Cable | 4mm² (L-N); 6mm² (PE) |
| Installation Method: | 35mm DIN Rail |
| Switching Contact (Optional) | |
| C+NC: Normally closed | |
| Type of comman contact | C: Common contact |
| Switching Capacity | 250V/0.1A, 125V/0.2A, 75V/0.5A |
| Operational Temperature Range: | -40°C to +80°C |
